M23053/8 — PVDF Heat Shrink

Flame retardant, semi-rigid, irradiated Polyvinylidene Fluoride · 2:1 shrink ratio · -55°C to 175°C · Clear only. Click any part number to view specs and request a quote.

Back to M23053 Variants

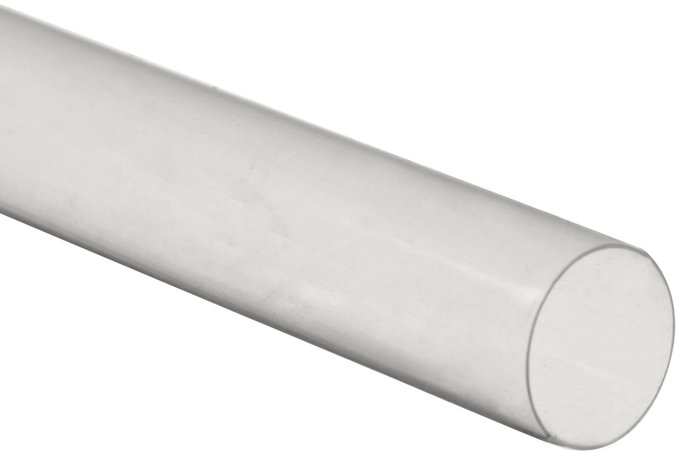

M23053/8 is a flame retardant, semi-rigid, irradiated Polyvinylidene Fluoride (PVDF) heat shrink tubing. It delivers tough thin-wall protection with outstanding cut-through, abrasion, and heat resistance. Available in Clear only.

Specification SAE-AMS-DTL-23053/8

Cross-Ref MIL-DTL-23053/8 · AMS-3632 · UL 224 VW-1 · CSA OFT

Shrink Ratio 2:1

Temp Range -55°C to 175°C

Storage Life 5 Years

Compliance RoHS Compliant

M23053/8 — PVDF Flame Retardant

Clear Only

Storage Life: 5 Years · AMS-DTL-23053/8 is only available in Clear (suffix -C)

Blake Part Number	Size (in.)	Expanded I.D. (in.)	Recovered I.D. (in.)	Nom. Recovered Wall Thickness (in.)
BT-800-101-C ›	3/64	0.046	0.023	0.018
BT-800-102-C ›	1/16	0.063	0.031	0.018
BT-800-103-C ›	3/32	0.093	0.046	0.020
BT-800-104-C ›	1/8	0.125	0.062	0.020
BT-800-105-C ›	3/16	0.187	0.093	0.020
BT-800-106-C ›	1/4	0.250	0.125	0.025
BT-800-107-C ›	3/8	0.375	0.187	0.025
BT-800-108-C ›	1/2	0.500	0.250	0.025
BT-800-109-C ›	3/4	0.750	0.500	0.030
BT-800-110-C ›	1	1.000	0.750	0.035
BT-800-111-C ›	1 1/2	1.500	0.080	0.040
