SAE-AMS-DTL-23053/13 Viton Heat Shrink

Irradiated Viton heat shrink tubing · Flexible at low and high temperatures · Resistant to fuels, solvents, acids & lubricants · Black only. Click any part number to view specs and request a quote.

Back to M23053 Variants

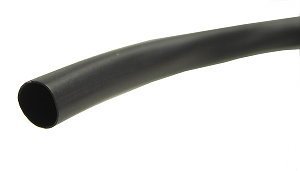

AMS-DTL-23053/13 is an irradiated Viton heat shrink tubing ideal where flexibility at low and high temperatures is required, along with resistance to abrasion, fuels, weathering, lubricants, acids, and solvents. Available in Black only.

Specification SAE-AMS-DTL-23053/13

Cross-Ref MIL-DTL-23053/13 · MIL-R-46846 Type III, Class 1

Shelf Life 2 Years

Color Black Only

Compliance RoHS Compliant

M23053/13 — Irradiated Viton

Black Only · Shelf Life 2 Years

This material is only available in Black

Blake Part Number	I.D. Min. (in.)	I.D. Max. (in.)	Nom. Recovered Wall Thickness (in.)
BT-1300-001 ›	0.187	0.093	0.035
BT-1300-002 ›	0.250	0.125	0.035
BT-1300-003 ›	0.375	0.187	0.035
BT-1300-004 ›	0.500	0.250	0.035
BT-1300-005 ›	0.625	0.312	0.042
BT-1300-006 ›	0.750	0.375	0.042
BT-1300-007 ›	0.875	0.438	0.049
BT-1300-008 ›	1.000	0.500	0.049
BT-1300-009 ›	1.250	0.625	0.055
BT-1300-010 ›	1.500	0.750	0.055
BT-1300-011 ›	2.000	1.000	0.065
BT-1300-012 ›	0.125	0.063	0.065
