M23053/1 — Class 1 & Class 2

Flexible flame retardant neoprene heat shrink tubing · 2:1 shrink ratio · Black only. Click any part number to view specs and request a quote.

Back to M23053 Variants

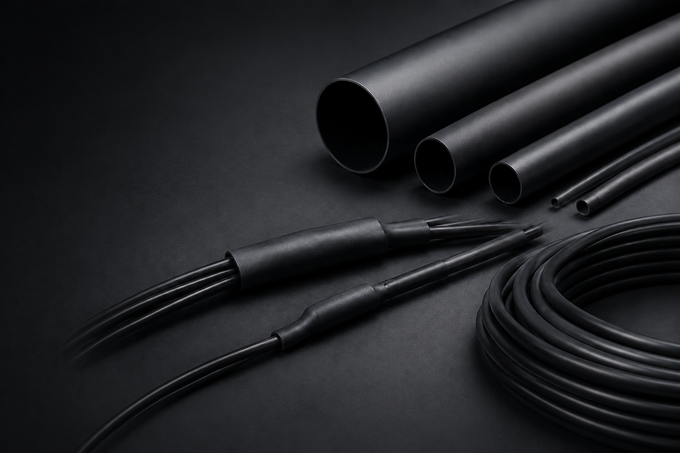

M23053/1 is a flexible, flame retardant, modified neoprene heat shrinkable tubing for high and low temperature applications. Provides rugged cable protection from abrasion, abuse, strain relief, and resistance to aviation fuels, solvents, and hydraulic fluids. 2:1 shrink ratio. Black only.

Specification SAE-AMS-DTL-23053/1
Cross-Ref MIL-DTL-23053/1 · MIL-R-46846 Type 1 · AMS 3623
Shrink Ratio 2:1
Compliance RoHS Compliant

Class 1

−55°C to +90°C
Normal Operating Temperature −55°C to +90°C · Shelf Life: 1 Year · Black only
Blake Part Number I.D. Min. (in.) I.D. Max. (in.) Recovered Wall Thickness (in.)
BT100-101-0 ›0.2500.1430.035
BT100-102-0 ›0.3750.2110.040
BT100-103-0 ›0.5000.2860.048
BT100-104-0 ›0.6250.3570.052
BT100-105-0 ›0.7500.4280.057
BT100-106-0 ›0.8750.5000.065
BT100-107-0 ›1.0000.5700.070
BT100-108-0 ›1.2500.7140.087
BT100-109-0 ›1.5000.8570.095
BT100-110-0 ›1.7501.0000.107
BT100-111-0 ›2.0001.1400.110
BT100-112-0 ›3.0001.7100.125
BT100-113-0 ›4.0002.2800.140

Class 2

−70°C to +121°C
Extended Operating Temperature −70°C to +121°C · Shelf Life: 1 Year · Black only
Blake Part Number I.D. Min. (in.) I.D. Max. (in.) Recovered Wall Thickness (in.)
BT100-201-0 ›0.2500.1430.035
BT100-202-0 ›0.3750.2110.040
BT100-203-0 ›0.5000.2860.048
BT100-204-0 ›0.6250.3570.052
BT100-205-0 ›0.7500.4280.057
BT100-206-0 ›0.8750.5000.065
BT100-207-0 ›1.0000.5700.070
BT100-208-0 ›1.2500.7140.087
BT100-209-0 ›1.5000.8570.095
BT100-210-0 ›1.7501.0000.107
BT100-211-0 ›2.0001.1400.110
BT100-212-0 ›3.0001.7100.125
BT100-213-0 ›4.0002.2800.140
