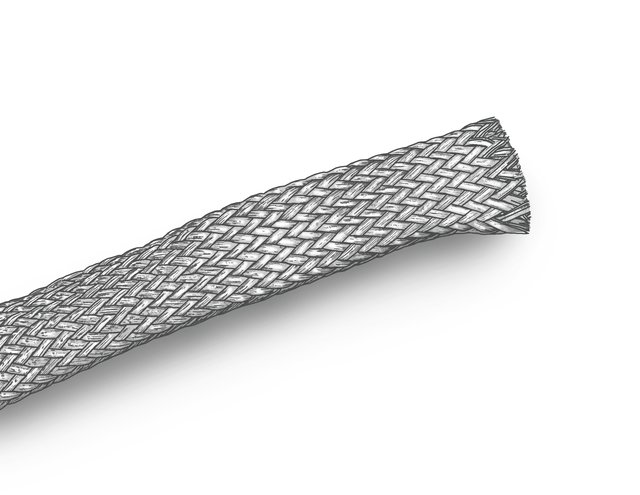

AA-59569 Braid — Blake Wire

Back to Product Catalog

Braid is formed so as to maintain coverage of 90% shielding (70% for 0.78" and smaller) over the nominal diameters specified. Available in Tinned Copper (ASTM B33) and Silver Plated Copper (ASTM B298, 40 µin minimum silver plating). Silver plated wire is excellent for use at temperatures exceeding 200°C or where special corrosion resistance is required.

Tinned Copper Tubular Braid

Tubular

Blake Part Number	Nominal I.D. When Rounded	AWG of Individual Ends	Carriers	# of Wires Per Strand	Total # of Individual Ends	Approx. AWG Equiv.	Approx. Current Cap. (A)
BBD-10101 ›	1/16	32	16	1	16	20	9.0
BBD-10102 ›	7/64	32	16	2	32	17	18.0
BBD-10103 ›	1/8	32	24	2	48	15	25.0
BBD-10104 ›	11/64	32	24	3	72	14	32.0
BBD-10105 ›	13/64	32	24	5	120	11	46.0
BBD-10106 ›	3/8	32	48	3	144	11	46.0
BBD-10107 ›	1/2	32	48	4	192	9	62.0
BBD-10108 ›	25/32	32	48	7	336	7	88.0
BBD-10109 ›	1/16	34	16	2	32	19	11.0
BBD-10110 ›	7/64	34	16	4	64	16	19.0
BBD-10111 ›	1/8	34	24	3	72	16	19.0
BBD-10112 ›	11/64	34	24	5	120	14	32.0
BBD-10113 ›	3/16	34	24	6	144	13	38.0
BBD-10114 ›	1/4	34	24	7	168	12	41.0
BBD-10115 ›	3/8	34	24	8	192	11	46.0
BBD-10116 ›	3/8	34	48	5	245	10	53.0
BBD-10117 ›	1/2	34	48	7	336	9	62.0
BBD-10118 ›	5/8	34	48	8	240	8	64.0
BBD-10119 ›	11/16	34	48	10	480	7	81.0
BBD-10120 ›	25/32	34	48	11	528	7	85.0
BBD-10121 ›	13/16	34	48	12	576	7	90.0
BBD-10122 ›	1/32	36	24	1	24	22	7.0
BBD-10123 ›	1/16	36	24	2	48	19	11.0
BBD-10124 ›	5/64	36	24	3	72	18	16.0
BBD-10125 ›	7/64	36	24	4	96	16	19.0
BBD-10126 ›	1/8	36	24	5	120	15	25.0
BBD-10127 ›	5/32	36	24	10	240	12	40.0
BBD-10128 ›	11/64	36	24	7	168	14	32.0
BBD-10129 ›	13/64	34	24	8	192	11	46.0
BBD-10130 ›	13/64	36	24	13	312	11	46.0
BBD-10131 ›	1/4	36	24	16	384	10	53.0
BBD-10132 ›	9/32	30	24	5	120	9	60.0
BBD-10133 ›	3/8	30	24	7	168	8	75.0
BBD-10134 ›	3/8	36	48	8	384	10	53.0
BBD-10135 ›	7/16	30	24	10	240	6	90.0
BBD-10136 ›	1/2	30	24	15	360	5	120.0
BBD-10137 ›	1/2	36	48	11	528	9	62.0
BBD-10138 ›	9/16	30	48	10	480	3	145.0
BBD-10139 ›	21/32	30	48	16	768	1	190.0
BBD-10140 ›	25/32	36	48	18	864	7	88.0
BBD-10141 ›	7/8	30	48	7	336	5	100.0
BBD-10142 ›	1	30	48	8	384	4	120.0
BBD-10143 ›	1 1/8	30	48	9	432	4	130.0
BBD-10144 ›	1 1/4	30	48	10	480	3	145.0
BBD-10145 ›	1 3/8	30	48	11	528	3	145.0
BBD-10146 ›	1 1/2	30	48	12	576	3	145.0
BBD-10147 ›	1 7/8	30	48	14	672	2	180.0
BBD-10148 ›	2 1/4	30	48	16	768	1	190.0

Silver Plated Copper Tubular Braid

Tubular · Silver Plated

Blake Part Number	Nominal Inside Diameter (in.)	AWG of Individual Ends	Carriers	# of Wires Per Strand	Total # of Individual Ends	Approx. AWG Equiv.	Approx. Current Cap. (A)
BBD-10300T ›	0.031	36	24	1	24	22	7.0
BBD-10301T ›	0.062	36	24	2	48	19	11.0
BBD-10302T ›	0.062	34	16	2	32	19	11.0
BBD-10303T ›	0.062	32	16	1	16	20	9.0
BBD-10304T ›	0.078	36	24	3	72	18	16.0
BBD-10305T ›	0.109	36	24	4	96	16	19.0
BBD-10306T ›	0.109	34	16	4	64	16	19.0
BBD-10307T ›	0.109	32	16	2	32	17	18.0
BBD-10308T ›	0.125	36	24	5	120	15	25.0
BBD-10309T ›	0.125	34	24	3	72	16	19.0
BBD-10310T ›	0.125	32	24	2	48	15	25.0
BBD-10311T ›	0.156	36	24	10	240	12	40.0
BBD-10312T ›	0.171	36	24	7	168	14	32.0
BBD-10313T ›	0.171	34	24	5	120	13	36.0
BBD-10314T ›	0.171	32	24	3	72	14	32.0
BBD-10315T ›	0.203	36	24	13	312	11	46.0
BBD-10316T ›	0.203	34	24	8	192	11	46.0
BBD-10317T ›	0.203	32	24	5	120	11	46.0
BBD-10318T ›	0.250	36	24	16	384	10	53.0
BBD-10319T ›	0.281	30	24	5	120	9	60.0
BBD-10320T ›	0.375	36	48	8	384	10	53.0
BBD-10321T ›	0.375	34	48	5	240	10	53.0
BBD-10322T ›	0.375	32	48	3	144	11	46.0
BBD-10323T ›	0.375	30	24	7	168	8	75.0
BBD-10324T ›	0.437	30	24	10	240	6	90.0
BBD-10325T ›	0.500	36	48	11	528	9	62.0
BBD-10326T ›	0.500	34	24	7	336	9	62.0
BBD-10327T ›	0.500	32	48	4	192	9	62.0
BBD-10328T ›	0.500	30	48	15	360	5	120.0
BBD-10329T ›	0.562	30	48	10	480	3	145.0
BBD-10330T ›	0.656	30	48	16	768	1	190.0
BBD-10331T ›	0.781	36	48	18	864	7	88.0
BBD-10332T ›	0.781	34	48	11	528	7	88.0
BBD-10333T ›	0.781	32	48	7	336	7	88.0
BBD-10334T ›	0.875	30	48	7	336	5	100.0
BBD-10335T ›	1.000	30	48	8	384	4	120.0
BBD-10336T ›	1.125	30	48	9	432	4	130.0
BBD-10337T ›	1.375	30	48	11	528	3	150.0
BBD-10338T ›	1.500	30	48	12	576	2	165.0

Tinned Copper Flat Braid

Flat

Blake Part Number	Nominal I.D. / Flat Width	AWG of Individual Ends	Carriers	# of Wires Per Strand	Total # of Individual Ends	Approx. AWG Equiv.	Approx. Current Cap. (A)
BBD-10200F ›	1/40	36	8	1	8	27	4.0
BBD-10201F ›	1/32	36	16	1	16	24	6.0
BBD-10202F ›	3/64	36	24	1	24	22	7.0
BBD-10203F ›	3/32	36	16	3	48	19	11.0
BBD-10204F ›	1/16	36	24	2	48	19	11.0
BBD-10205F ›	7/64	36	16	4	64	18	16.0
BBD-10206F ›	1/8	36	24	3	72	18	16.0
BBD-10207F ›	5/32	36	24	4	96	16	19.0
BBD-10208F ›	3/16	36	24	5	120	15	25.0
BBD-10209F ›	1/4	36	24	7	168	14	32.0
BBD-10210F ›	5/32	36	24	10	240	12	40.0
BBD-10211F ›	13/16	36	24	13	312	11	46.0
BBD-10212F ›	3/8	36	48	6	288	12	40.0
BBD-10213F ›	1/2	36	48	8	384	10	53.0
BBD-10214F ›	5/8	36	48	8	384	10	53.0
BBD-10215F ›	1/2	36	48	11	528	9	62.0
BBD-10216F ›	3/4	36	48	18	832	7	85.0
BBD-10217F ›	1	36	48	18	832	7	85.0
BBD-10218F ›	13/16	36	48	19	912	7	93.0
BBD-10219F ›	3/4	36	24	67	1608	4	125.0
BBD-10220F ›	1 5/8	36	48	84	4032	1/0	230.0
BBD-10221F ›	1/2	30	24	10	240	6	93.0
BBD-10222F ›	5/8	30	24	15	360	5	120.0
BBD-10223F ›	3/4	30	24	20	480	3	145.0
BBD-10224F ›	7/8	30	24	24	576	3	165.0
BBD-10225F ›	15/16	30	24	26	624	2	170.0
BBD-10226F ›	15/16	30	24	27	648	2	175.0
BBD-10227F ›	1	30	24	32	768	1	195.0
BBD-10228F ›	3/4	30	48	5	240	6	80.0
BBD-10229F ›	1 3/8	30	48	7	336	5	100.0
BBD-10230F ›	1	30	48	8	384	4	120.0
BBD-10231F ›	1 1/4	30	48	10	480	3	145.0
BBD-10232F ›	1 1/2	30	48	11	528	3	145.0
BBD-10233F ›	7/8	30	48	12	576	2	150.0
BBD-10234F ›	1 3/8	30	48	14	672	2	165.0
BBD-10235F ›	1 1/2	30	48	16	768	1	180.0
BBD-10236F ›	1 5/8	30	48	18	864	1	200.0
BBD-10237F ›	1 3/8	30	48	22	1056	1/0	235.0
BBD-10238F ›	1 3/4	30	48	26	1248	2/0	250.0
BBD-10239F ›	2	30	48	28	1344	2/0	255.0
BBD-10240F ›	2	30	48	32	1536	3/0	290.0
BBD-10241F ›	2 1/4	30	48	35	1636	3/0	320.0
BBD-10242F ›	2 3/8	30	48	44	2112	4/0	370.0
BBD-10243F ›	2 1/2	30	48	52	2496	250 MCM	410.0

Silver Plated Copper Flat Braid

Flat · Silver Plated

Blake Part Number	Nominal Inside Diameter (in.)	AWG of Individual Ends	Carriers	# of Wires Per Strand	Total # of Individual Ends	Approx. AWG Equiv.	Approx. Current Cap. (A)
BBD-10300F ›	0.031	36	24	1	24	22	7.0
BBD-10301F ›	0.062	36	24	2	48	19	11.0
BBD-10302F ›	0.062	34	16	2	32	19	11.0
BBD-10303F ›	0.062	32	16	1	16	20	9.0
BBD-10304F ›	0.078	36	24	3	72	18	16.0
BBD-10305F ›	0.109	36	24	4	96	16	19.0
BBD-10306F ›	0.109	34	16	4	64	16	19.0
BBD-10307F ›	0.109	32	16	2	32	17	18.0
BBD-10308F ›	0.125	36	24	5	120	15	25.0
BBD-10309F ›	0.125	34	24	3	72	16	19.0
BBD-10310F ›	0.125	32	24	2	48	15	25.0
BBD-10311F ›	0.156	36	24	10	240	12	40.0
BBD-10312F ›	0.171	36	24	7	168	14	32.0
BBD-10313F ›	0.171	34	24	5	120	13	36.0
BBD-10314F ›	0.171	32	24	3	72	14	32.0
BBD-10315F ›	0.203	36	24	13	312	11	46.0
BBD-10316F ›	0.203	34	24	8	192	11	46.0
BBD-10317F ›	0.203	32	24	5	120	11	46.0
BBD-10318F ›	0.250	36	24	16	384	10	53.0
BBD-10319F ›	0.281	30	24	5	120	9	60.0
BBD-10320F ›	0.375	36	48	8	384	10	53.0
BBD-10321F ›	0.375	34	48	5	240	10	53.0
BBD-10322F ›	0.375	32	48	3	144	11	46.0
BBD-10323F ›	0.375	30	24	7	168	8	75.0
BBD-10324F ›	0.437	30	24	10	240	6	90.0
BBD-10325F ›	0.500	36	48	11	528	9	62.0
BBD-10326F ›	0.500	34	24	7	336	9	62.0
BBD-10327F ›	0.500	32	48	4	192	9	62.0
BBD-10328F ›	0.500	30	48	15	360	5	120.0
BBD-10329F ›	0.562	30	48	10	480	3	145.0
BBD-10330F ›	0.656	30	48	16	768	1	190.0
BBD-10331F ›	0.781	36	48	18	864	7	88.0
BBD-10332F ›	0.781	34	48	11	528	7	88.0
BBD-10333F ›	0.781	32	48	7	336	7	88.0
BBD-10334F ›	0.875	30	48	7	336	5	100.0
BBD-10335F ›	1.000	30	48	8	384	4	120.0
BBD-10336F ›	1.125	30	48	9	432	4	130.0
BBD-10337F ›	1.375	30	48	11	528	3	150.0
BBD-10338F ›	1.500	30	48	12	576	2	165.0
